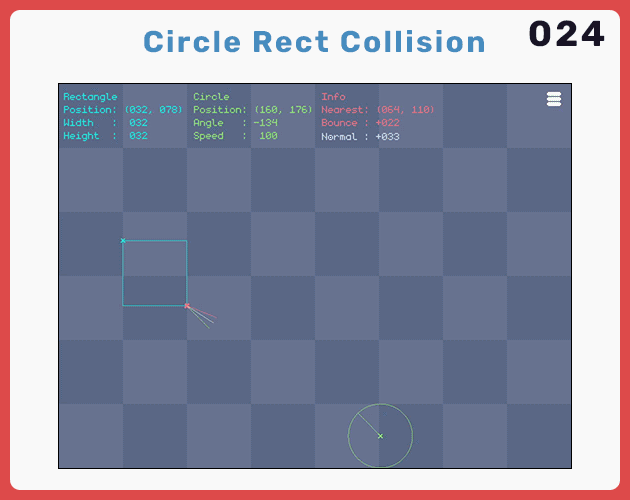

[024] Circle Rect Collision
[024] Circle Rect Collision
[15h] Math about Circle & Rectangle Collisions
[Feb 23] 2h - Circle Rect Collision Study [Feb 24] 7h - Circle Rect Collision Study [Feb 25] 6h - Circle Rect Collision UI Learned the collision math between Circle & Rectangle, so I can add it to my flocking logic to avoid walls. var r: Rect2 var c_pos: Vector2 var c_radius: float # Circle Rectangle Bounce [stackoverflow.com/a/45373126] c_nearest.x = maxf(r.position.x, minf(c_pos.x, r.position.x + r.size.x)) # closest point in rectangle c_nearest.y = maxf(r.position.y, minf(c_pos.y, r.position.y + r.size.y)) var distance: Vector2 = _circle_position - _nearest # nearest distance to circle center var normal: Vector2 = Vector2(-distance.y, distance.x) # normal vector var normal_angle: float = atan2(normal.y, normal.x) # normal in radians (3.1416) var incoming_angle: float = atan2(_circle_velocity.y, _circle_velocity.x) # circle velocity in radians var theta: float = normal_angle - incoming_angle _circle_velocity = _circle_velocity.rotate(2 * theta) # bounce velocity # 2D Geometry Library [youtu.be/QZFH7yrJ4H4] # Circle overlaps Rectangle var c_nearest: Vector2 c_nearest.x = maxf(r.position.x, minf(c_pos.x, r.position.x + r.size.x)) c_nearest.y = maxf(r.position.y, minf(c_pos.y, r.position.y + r.size.y)) var c_distance: float = c_pos.distance_to(c_nearest) # (c_nearest - c_pos).length() if c_distance - c_radius < 0: # overlaps if distance is less than circle radius
Status | Released |
Platforms | HTML5 |
Author | QuietGodot |
Made with | Godot |
